Apache Kafka with Spring Boot: Use Cases and Implementation Guide

Introduction

What is Apache Kafka?

Apache Kafka is a distributed streaming platform that is used to build real-time streaming data pipelines and applications that react to streams of data. It provides high-throughput, fault-tolerant, and low-latency data streaming, making it ideal for event-driven architectures and microservices.

When integrated with Spring Boot, Kafka allows applications to publish and consume messages, manage real-time data streams, and handle large-scale distributed environments efficiently.

Apache Kafka is like a communication system that helps different parts of a computer system exchange data by publishing and subscribing to topics.Simple term messaging system.

Some key aspects of Kafka:

1. Event Streaming: Kafka allows applications to publish, subscribe to, store, and process streams of events (also known as records or messages) in real-time. Events can be anything like a transaction, user interaction, or sensor data.

2. Producers and Consumers:

   • Producers: Applications or services that publish messages to Kafka topics.

   • Consumers: Applications or services that subscribe to Kafka topics and process those messages.

3. Topics: Kafka organizes and stores messages in categories called topics. Each topic can have multiple partitions, allowing messages to be processed concurrently across distributed systems.

4. Durability: Kafka stores data durably, meaning it can retain messages for a configurable amount of time, enabling replay and recovery of messages in case of failures.

5. Fault Tolerance: Kafka achieves fault tolerance through replication. Each partition of a topic is replicated across multiple Kafka brokers, ensuring data availability even if one broker fails.

6. Scalability: Kafka can handle high volumes of messages per second by adding more partitions and brokers, making it highly scalable for large data processing needs.

Use cases:

• Real-time analytics

• Log aggregation

• Event-driven microservices

• Stream processing

• Data integration between systems

  ---

Architecture

• Producers
  Producers are applications that publish (write) messages to Kafka topics. A producer can push data into multiple topics, and Kafka handles the distribution and persistence of these messages.

• Consumers
  Consumers are applications that read (consume) messages from Kafka topics. Consumers subscribe to one or more topics and pull data as needed, typically in a real-time streaming manner.

• Brokers
  Kafka runs as a cluster of one or more servers, known as brokers. Each broker is responsible for storing and serving messages. Kafka brokers handle read and write requests and ensure messages are replicated for fault tolerance.

• Topics
  Kafka topics are logical channels to which producers send records and from which consumers retrieve them. Each topic is divided into partitions to allow for parallelism.

• Partitions
  Topics are split into multiple partitions for load distribution. Each partition is an ordered sequence of records and is distributed across multiple brokers. This allows Kafka to scale horizontally.

• ZooKeeper
  ZooKeeper is used to manage and coordinate the Kafka cluster. It tracks the status of brokers and keeps information about which broker holds the partition leader for a given topic.

• Replication
  Kafka replicates data across brokers for fault tolerance. Each partition has a leader and multiple replicas. The leader handles all reads and writes, while replicas act as backups in case the leader fails.

Installation

1. Download Apache Kafka from official website https://kafka.apache.org/downloads

2. Extract file

3. Start Zookeeper

4. Start Apache Kafka Server

   bin\windows\zookeeper-server-start.bat config\zookeeper.properties

   bin\windows\kafka-server-start.bat config\server.properties

   Create topic

   bin\windows\kafka-topics.bat --create --topic user-topic --bootstrap-server localhost:9092

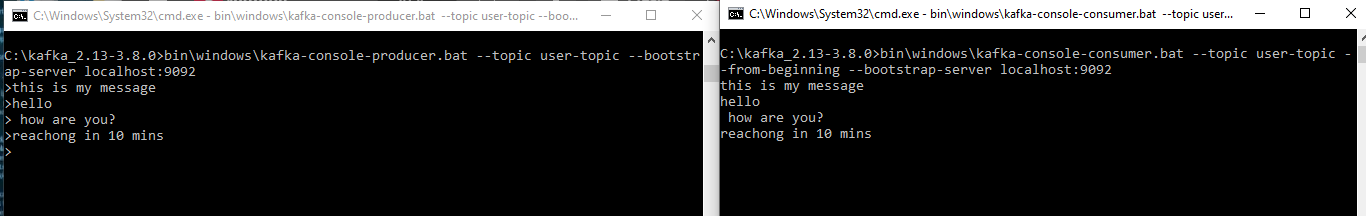

   Produce new topic

   bin\windows\kafka-console-producer.bat --topic user-topic --bootstrap-server localhost:9092

   Consumer messages

   bin\windows\kafka-console-consumer.bat --topic user-topic --from-beginning --bootstrap-server localhost:9092



   Above command are for windows.

Implementation Guide: Kafka Setup, Configuration, and Integration with Spring Boot.

Prerequisites

1. Basic knowledge of Java and Spring Boot

2. Java Development Kit (JDK) 8 or later installed

3. A suitable IDE, such as IntelliJ IDEA or Eclipse

4. Apache Kafka installed and running on your local machine

Setting Up Your Spring Boot Project

Create a new Spring Boot project with the following dependencies:

1. Spring for Apache Kafka

2. Spring Boot Starter Web

You can create the project using Spring Initializr, or manually add these dependencies to your Maven pom.xml or Gradle build.gradle file.

Maven:
        <dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.kafka</groupId>
			<artifactId>spring-kafka</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>org.springframework.kafka</groupId>
			<artifactId>spring-kafka-test</artifactId>
			<scope>test</scope>
		</dependency>


Gradle:
    dependencies {
    implementation 'org.springframework.kafka:spring-kafka'
    implementation 'org.springframework.boot:spring-boot-starter-web'
    }

Delivery Update Service with Apache Kafka and Spring Boot

Explore this project that demonstrates how to implement a Delivery Update Service using Apache Kafka and Spring Boot. The repository includes comprehensive code examples for:

• Setting up Kafka

• Producing and consuming messages

• Handling real-time delivery updates efficiently

You can find the complete code in the repository: SpringBoot-ApacheKafka-DeliveryUpdate.
